3 Meters 1 Roll Flatwork Ironer YP-3000Z/R/D
Single-Roller Model
Available in either front entry and front exit or front entry and back exit structure.
Multi-Roller Model
Available in front entry and back exit structure.
Ergonomics and Safety-First Design
l All mechanical parts are easily accessible.
l Protective baffles and limit switches prevent operator accidental injury.
l High-temperature-resistant ironing belts.
l The self-tensioned chain that maintains the correct tension on the ironing belts reduces wear and extends belt service life.
Standard with 304 stainless steel rollers.
Seamlessly integrate with OASIS washer extractors to streamline the ironing process.
Professional instructions on the intelligent controller guarantee smooth workflow and higher productivity.
The gas heating models are equipped with touchscreen controller which allows flexible program setting based on fabric type and humidity levels, automatically adjusting ironing speed and temperature to ensure perfect ironing quality and energy efficient results.
Product Description:
Model:YP-3000Z/R/D
Available in steam heating, gas heating, and electric heating.
Available in ironing width of three meters and 3.3 meters.
Available in 1 to 6 rollers.
Single-Roller Model
Available in either front entry and front exit or front entry and back exit structure.
Multi-Roller Model
Available in front entry and back exit structure.
Ergonomics and Safety-First Design
l All mechanical parts are easily accessible.
l Protective baffles and limit switches prevent operator accidental injury.

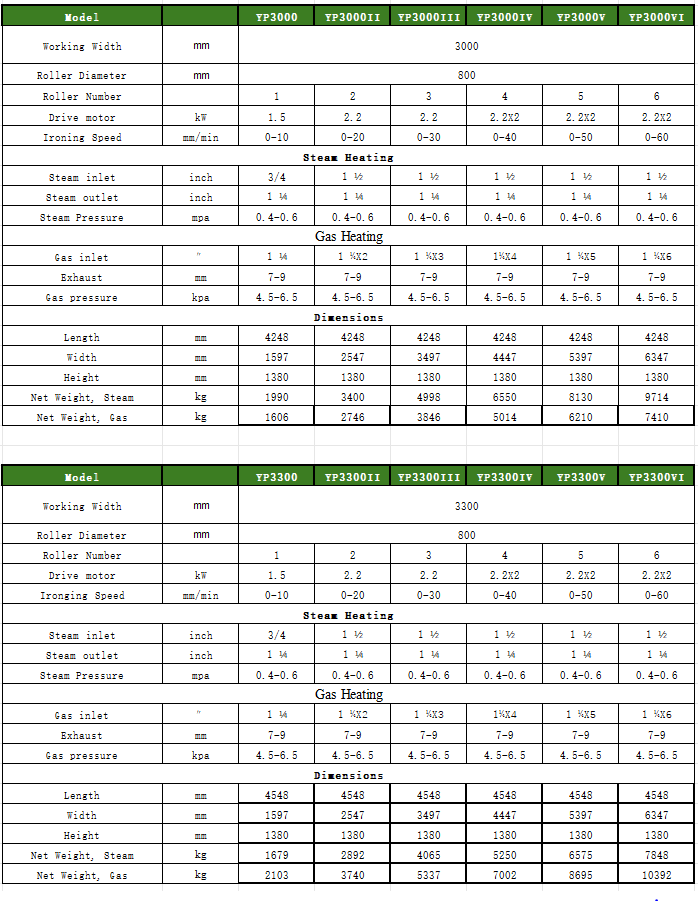

Product Parameter:
Steam heating | |||||||||||||
YP-3000ⅠZ | YP-3000ⅡZ | YP-3000ⅢZ | YP-3000ⅣZ | YP-3000ⅤZ | YP-3000ⅥZ | YP-3300ⅠZ | YP-3300ⅡZ | YP-3300ⅢZ | YP-3300ⅣZ | YP-3300ⅤZ | YP-3300ⅥZ | ||
MAX. ironing width | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 |
Roller Diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
Electric Power | |||||||||||||
Drive motor | kw | 1.5 | 2.2 | 2.2 | 2.2X2 | 2.2X2 | 2.2X2 | 1.5 | 2.2 | 2.2 | 2.2X2 | 2.2X2 | 2.2X2 |
Connections | |||||||||||||
Steam inlet | ″ | 3/4 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 3/4 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 | 1-1/2 |
Steam outlet | ″ | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 |
Steam Pressure | MPA | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Dimensions | |||||||||||||
Length | mm | 4248 | 4248 | 4248 | 4248 | 4248 | 4248 | 4548 | 4548 | 4548 | 4548 | 4548 | 4548 |
Width | mm | 1597 | 2547 | 3497 | 4447 | 5397 | 6347 | 1597 | 2547 | 3497 | 4447 | 5397 | 6347 |
Hight | mm | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
Net Weight | kg | 1606 | 2746 | 3846 | 5014 | 6210 | 7410 | 1679 | 2892 | 4065 | 5250 | 6575 | 7848 |
Gas heating | |||||||||||||
Model | 单位 | YP-3000ⅠR | YP-3000ⅡR | YP-3000ⅢR | YP-3000ⅣR | YP-3000ⅤR | YP-3000ⅥR | YP-3300ⅠR | YP-3300ⅡR | YP-3300ⅢR | YP-3300ⅣR | YP-3300ⅤR | YP-3300ⅥR |
MAX. ironing width | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 |
Roller Diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
Electric Power | |||||||||||||
Drive motor | kw | 1.5 | 2.2 | 2.2 | 2.2X2 | 2.2X2 | 2.2X2 | 1.5 | 2.2 | 2.2 | 2.2X2 | 2.2X2 | 2.2X2 |
Connections | |||||||||||||
Gas inlet | ″ | 114 | 114*2 | 114*3 | 114*4 | 114*5 | 114*6 | 114.00 | 114*2 | 114*3 | 114*4 | 114*5 | 114*6 |
Exhaust | mm | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 |
Gas pressure | KPA | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 | 4.5-6.5 |
Dimensions | |||||||||||||
Length | mm | 4248 | 4248 | 4248 | 4248 | 4248 | 4248 | 4548 | 4548 | 4548 | 4548 | 4548 | 4548 |
Width | mm | 1597 | 2547 | 3497 | 4447 | 5397 | 6347 | 1597 | 2547 | 3497 | 4447 | 5397 | 6347 |
Height | mm | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
Net Weight | kg | 1990 | 3400 | 4998 | 6550 | 8130 | 9714 | 2103 | 3740 | 5337 | 7002 | 8695 | 10392 |

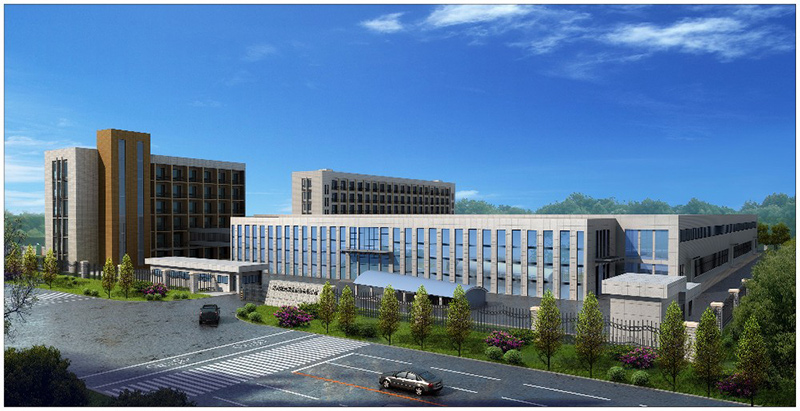

Company Strength:

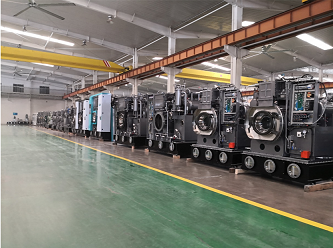

At Oasis, our mission is clear: "Win the market with quality, and seek development through reputation." From day one, we've upheld a philosophy of independent production and processing, boasting four commercial washing machine lines, two tumble dryer lines, a dry cleaning machine line, a tunnel washer line, a textile and garment finishing line, and dedicated mechanical processing facilities.

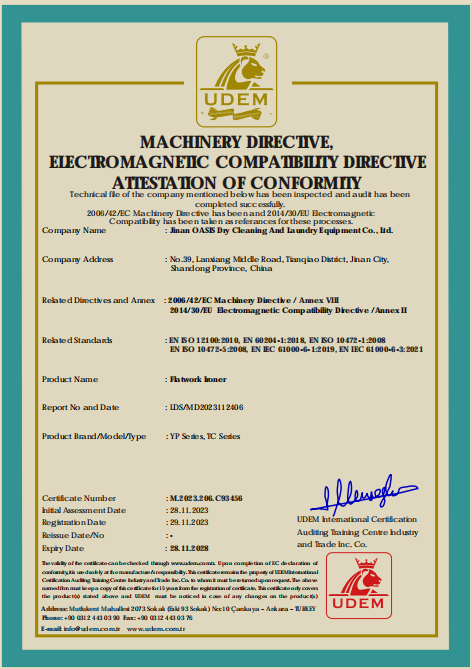

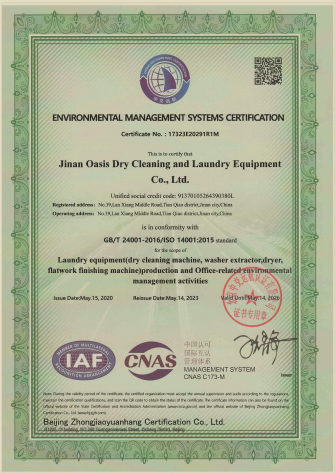

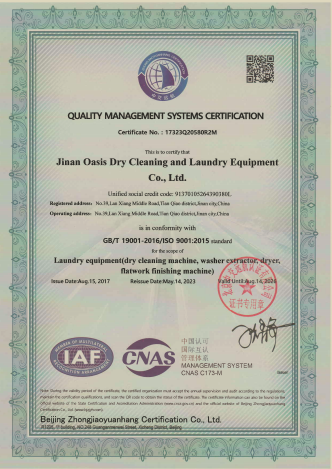

As an industry leader, Oasis adheres to ISO9001 and national military quality management standards, alongside international benchmarks like CE and ETL certifications, with over 50 patents and copyrights to our name. We're honored to have received numerous national and industry awards, including recognition as a National High-tech Enterprise, a Well-known Brand in the National Washing and Dyeing Industry, a national "Gazelle" Enterprise, and one of the Top 10 National Brands in the Washing Machinery Industry.

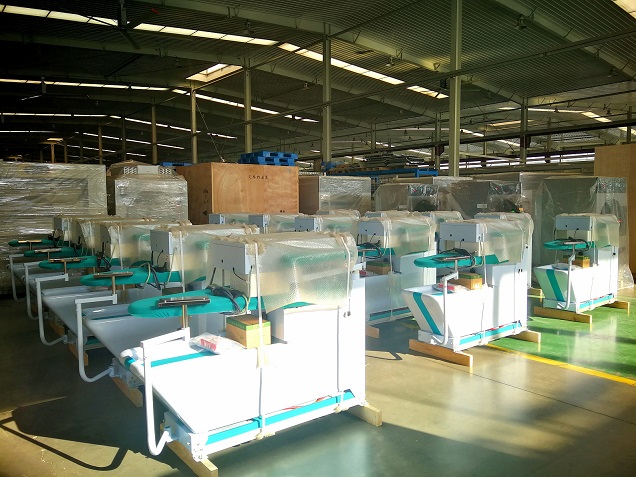

Packaging and transportation:
