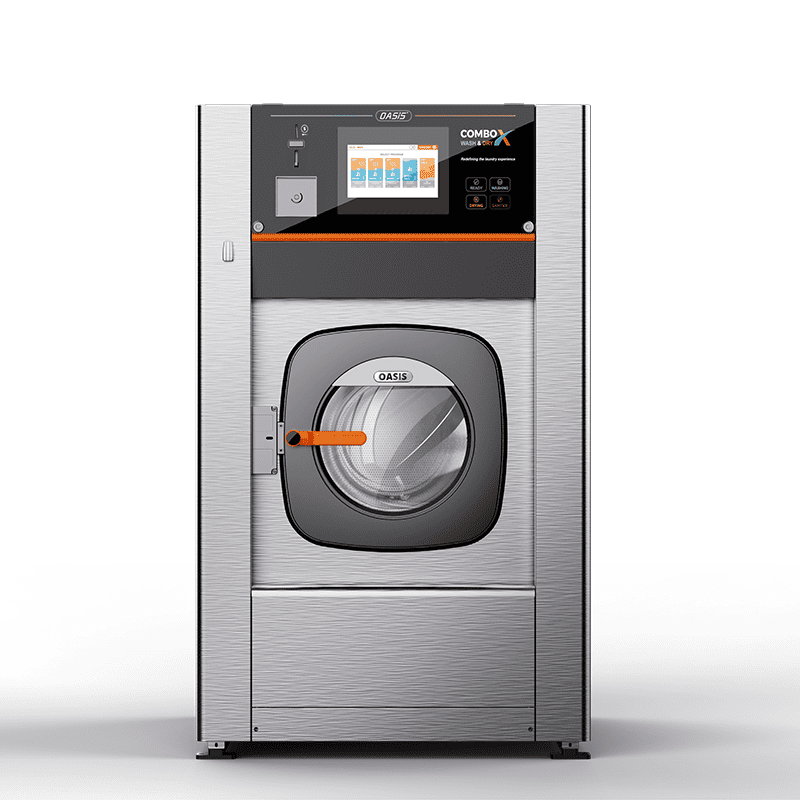

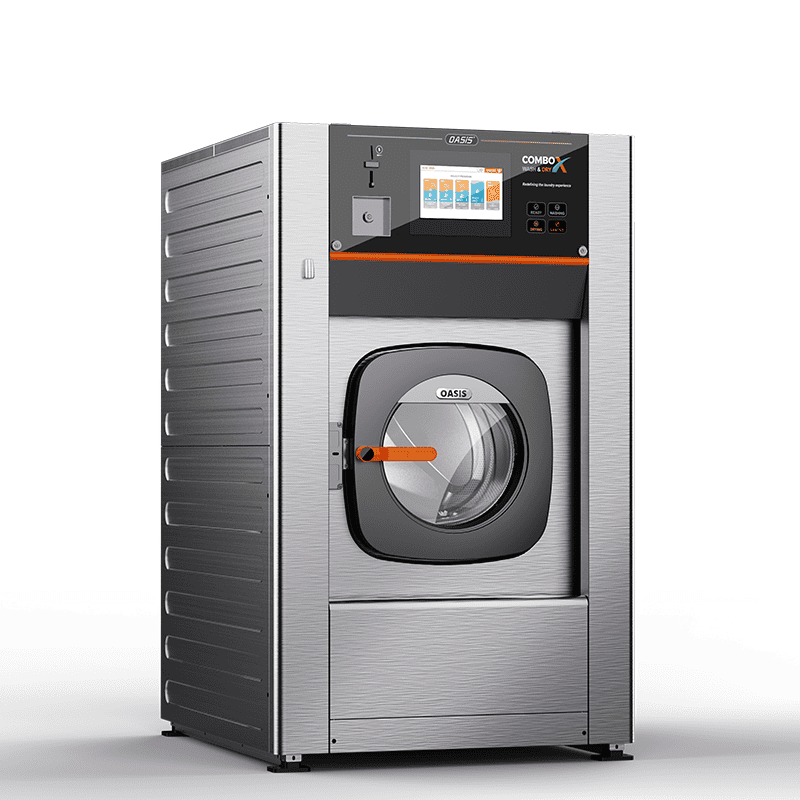

20KG Vended Single-Drum Washer Dryer Combo
Features:
1.Combined softmount washer and dryer into one pocket
2.1-hour wash and dry cycle
3.Stainless steel drum
4.High 300 G-force extraction for optimal drying performance
5.Clad steel panels resist rust and fingerprints
6.Front lint filter drawer makes clean lint easier.
7.Standard configuration includes 4 chemical compartments and 5 hoses for dosing pumps.
8.Mechanical and electronic double door locks, along with an emergency stop
9.Advanced inverter drive system
10.Easy access to service parts from front and back panels
Product Features:
1.One-Step Wash & Dry Convenience
Wash and dry in a single machine. Save time and effort with seamless automatic transition between washing and drying cycles.
Saves space for compact laundromat layouts.
2.Superior Cleaning & Drying Performance
OASIS delivers exceptional wash results and faster drying compared to other combo machines, ensuring cleaner, fresher laundry every time.
3.Heavy-Duty 300G Washer Construction
High-speed 300G extraction reduces residual moisture effectively, cutting down drying time and improving energy efficiency.
4.Front Inlet Hot Air Drying System
Powerful front air intake ensures strong heat penetration for quicker, more even drying with shorter cycle times.
5.Reduce Gas Consumption by up to 40%
Optimized heating and airflow design deliver faster drying with less energy use — helping you save on gas costs without compromising performance.
6.Industry First Self-Cleaning Lint Filter
Innovative automatic lint filter cleaning system maintains consistent airflow, enhances drying efficiency, and reduces maintenance costs.
Control:
1.10-inch full-color touchscreen control offers 6 vended programs
2.Vend audit data, service audit data and remaining time indicator
3.Payment options available in coin, card, mobile pay, and central payment
Product Parameter:
| Model | XHY20 | XHY30 | ||
| Washing capacity | kg | 20 | 30 | |
| Drying capacity | kg | 12 | 18 | |
| Cylinder diameter | mm | 683 | 774 | |
| Cylnder depth | mm | 550 | 580 | |
| Cylinder volume | L | 201 | 273 | |
| Washing speed | rpm | 40-50 | 40-50 | |
| Spin speed | rpm | 900 | 850 | |
| G force | 308 | 312 | ||
| Drive Motor | kw | 1.2 | 2 | |
| Fan Motor | kw | 0.55 | 0.55 | |
| Gas inlet | inch | 1/2 | ||
| Gas pressure | kPa | NG 1.0-2.5;LPG 2.3-3.3 | ||
| Exhaust | mm | φ160 | φ160 | |
| Exhaust airflow | m³/h | 501 | 825 | |
| Power supply | 220-240VAC @50/60Hz 1ph (15A Max) | |||
| Water inlet,hot | inch | 3/4 | ||
| Water inlet,cold | inch | 3/4 | ||
| Chemical flush | inch | 3/4 | ||
| Auto chemical | 4 connections,Optional dosing pump | |||
| Water Pressure | Mpa | 0.1 -0.3 | ||
| Dimension WxDxH | mm | 960×1170×1628 | 1080×1289×1738 | |
| Packing WxDxH | mm | 980×1190×1728 | 1100×1309×1838 | |
| Weight net | kg | 560 | 740 | |
| Weight gross | kg | 580 | 760 | |
| OASIS preserves the right to change the machines and specifications at any time without prior notice. | ||||
Product Application:
Hotel Healthcare Laundromat
Company Strength:
Full-range production and supply capabilities covering Commercial Washer And Dryer Combo systems, durable Coin Operated Washer And Dryer Combo solutions, and versatile Commercial All In One Washer Dryer configurations.
Modular equipment designs with energy efficiency advantage.
Dedicated technical support team providing multi-language services.
Flexible OEM/ODM solutions for regional market adaptation.
Product Inventory：
Commercial Washer And Dryer Combo – Integrated solution combining high-performance washing and drying in a single unit, engineered for continuous operation in hospitality, healthcare, and multi-housing facilities.
Coin Operated Washer And Dryer Combo – Revenue-ready design with reliable coin mechanisms, ideal for vended laundry businesses seeking durable, low-maintenance equipment.
Commercial All In One Washer Dryer – Space-efficient unit with advanced controls and automated cycles, delivering complete laundry processing without the need for separate equipment.
Product Certification:
Our company has four authoritative certifications covering management systems and product compliance: three IAF/CNAS certifications (ISO9001, ISO14001, ISO45001) validate its international standards in quality contro.environmental management, and occupational health and safety, while the EU compliance statement confirms its compliance with the Machinery and EMC directives, making its products eligible to enter the EU market. These certificates collectively demonstrate the company's robust management practices and global market readiness.
