18KG Commercial Multi-Solvent Dry Cleaning Machine HMS340
Energy Efficiency Expert:
l Two sets of Danfoss temperature-controlled water valves automatically adjust water flow based on the refrigeration unit's temperature.
l Danfoss oversized refrigeration units and environmentally friendly refrigerants provide high cooling capacity, rapid drying and condensation, and thorough solvent recovery.
l The meticulously designed drying chamber significantly enhances the induced flow of air and solvent vapor into the recovery chamber, thereby reducing cycle time, increasing production capacity, achieving faster garment cleaning, and substantial energy savings.
l Available in water-cooled and air-cooled (optional filter) cooling systems.
Performance Expert:
l Patent-designed cylinder achieves a maximum speed of 650 rpm.
l Large dual-filter system, including a centrifugal ecological filter and activated carbon filter, ensures excellent cleaning results, even for light-colored garments.
l Two-stage vacuum distillation technology, isolating low-boiling-point contaminants from the solvent, greatly improves overall solvent quality.
l Hydro-Sens™ sensor probes realize automatic drainage during the distillation process.
l Dual-variable frequency speed control system ensures significant energy savings, smoother and more reliable machine operation while minimizes noise.
l Patent-designed solvent tank bottom trough comes with self-cleaning functionality.
Quality Expert:
All components in contact with solvents are 304 Stainless Steel. All electrical components adopt world-renowned brands and have CE certification.
Safety Expert:
l The safety door lock system complies with European regulations. Loading door, button collector, large-sized lint collector, and distillation tanks are all equipped with pneumatic safety door lock systems.
l The distillation tank safety controller prevents from excessive solvent injection.
l Nitrogen safety injection system.
Product Description:
Model: HMS340
Energy Efficiency Specialist:
- Offered with both water-cooled and air-cooled (with optional filter) cooling systems for enhanced efficiency.
Performance Enhancement Specialist:
- Our dual-variable frequency speed control system not only delivers substantial energy savings but also ensures smoother and more reliable machine operation while minimizing noise levels.
Product Parameter:
Unit | HMS-200 | HMS-253 | HMS-340 | HMS-480 | HMS-560 | |
Capacity | kg | 10 | 14 | 18 | 25 | 30 |
Cylinder Diameter | mm | 683 | 774 | 903 | 1078 | 1078 |
Cylinder Depth | mm | 504 | 534 | 534 | 465 | 620 |
Wash Speed | r.p.m | 42 | 42 | 42 | 35 | 35 |
Extract Speed | r.p.m | 650 | 650 | 650 | 650 | 650 |
Solvent tank 1 volume | L | 120 | 138 | 145 | 167 | 227 |
Solvent tank 2 volume | L | 120 | 138 | 145 | 167 | 227 |
Solvent tank 3 volume | L | 155 | 190 | 206 | 250 | 277 |
Distillation Tank Volume | L | 176 | 236 | 260 | 290 | 338 |
Electric power | ||||||
Washing Motor | kw | 1.5 | 2.2 | 3.5 | 5.5 | 5.5 |
Solvent Pump Motor | kw | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 |
Fan Motor | kw | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
Compressor Motor | kw | 2.6 | 3.8 | 4.5 | 5.8 | 5.8 |
Filter Motor | kw | 0.37 | 0.12 | 0.12 | 0.12 | 0.12 |
Vacuum pump | kw | 0.25 | 0.25 | 0.25*2 | 0.25*2 | 0.25*2 |
Distillation Heating Power | kw | 11 | 11 | 11 | / | / |
Drying Heating Power | kw | 6.6 | 8.4 | 11 | / | / |
Connection | ||||||
Inlet | ″ | 3/4" | 3/4" | 1" | 1" | 1" |
Drain | ″ | 3/4" | 3/4" | 1" | 1" | 1" |
Steam inlet | ″ | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
Steam outlet | ″ | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
Compressed air | mm | ф8 | ф8 | ф8 | ф8 | ф8 |
Dimensions | ||||||
Depth | mm | 1940 | 2040 | 2140 | 2405 | 2405 |
Width | mm | 1430 | 1550 | 1550 | 1580 | 1635 |
Height | mm | 2040 | 2125 | 2290 | 2560 | 2560 |
Net Weight | kg | 1230 | 1600 | 1900 | 2100 | 2400 |
Packaging and transportation:
Product Inspection:

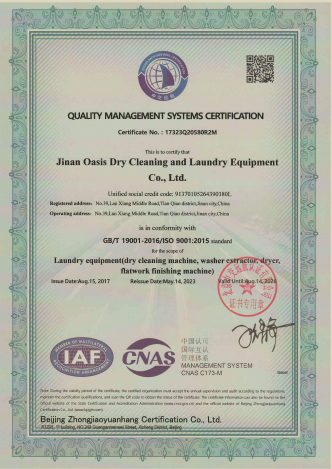

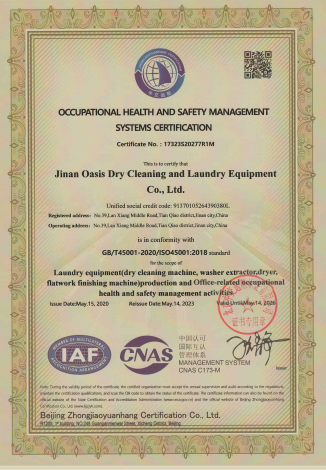

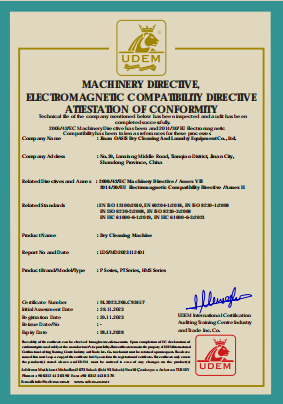

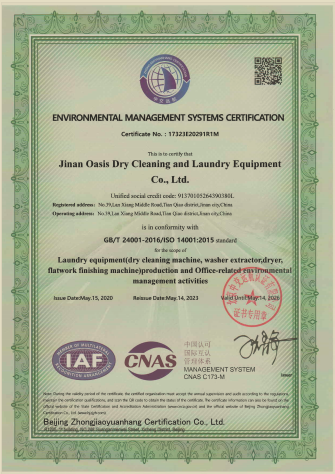

As an industry leader, OASIS diligently upholds the standards of ISO9001 and national military quality management systems. We also benchmark against global best practices. Our commitment to quality is reflected in the numerous international certifications our products have earned, including CE and ETL certifications. With over 50 patents and copyrights, we are at the forefront of innovation. We take pride in our recognition as a National High-tech Enterprise, a Well-known Brand in the National Washing and Dyeing Industry, and a Top 10 National Brand in the Washing Machinery Industry. Additionally, we have been honored as a national 'Gazelle' Enterprise and listed among the Top 100 National Light Industry Enterprises. These accolades testify to OASIS's unwavering dedication to integrity, innovation, quality, and service.

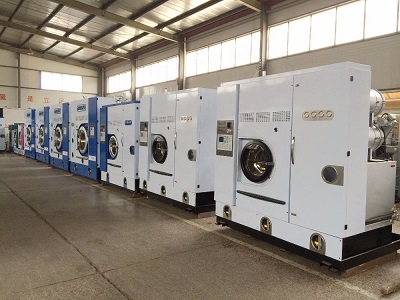

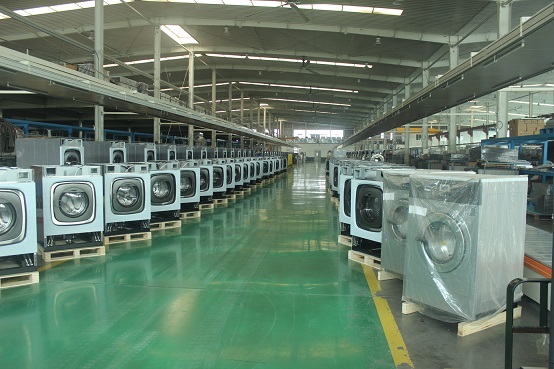

Company Strength:
At OASIS, quality reigns supreme. We operate with an exhaustive quality control system, committed to excellence in every phase of production and testing. To ensure the utmost standardization and automation in our manufacturing process, we continually integrate cutting-edge high-end production and processing equipment. Our arsenal includes top-of-the-line machinery such as the Japanese AMADA robot automatic welding system, AMADA fiber laser/punch combination machine, and AMADA 9000-watt fiber laser cutting system. Additionally, our lineup features advanced CNC turret punch presses, automatic loading and unloading systems, CNC press brakes, and TIMESAVERS rotary brush dry machines. We also employ precision equipment like the DAVI plate roll bending machine, EUROMAC CNC turret punch press, and KOMATSU plasma cutting machine. With heavy-duty machinery like the CNC machining center, 1600-ton hydraulic press, 1000-ton hydraulic press, and 30-thousand-watt CNC laser cutting machine, alongside a state-of-the-art cut-to-length production line, we ensure unparalleled quality in every aspect of our manufacturing process.
