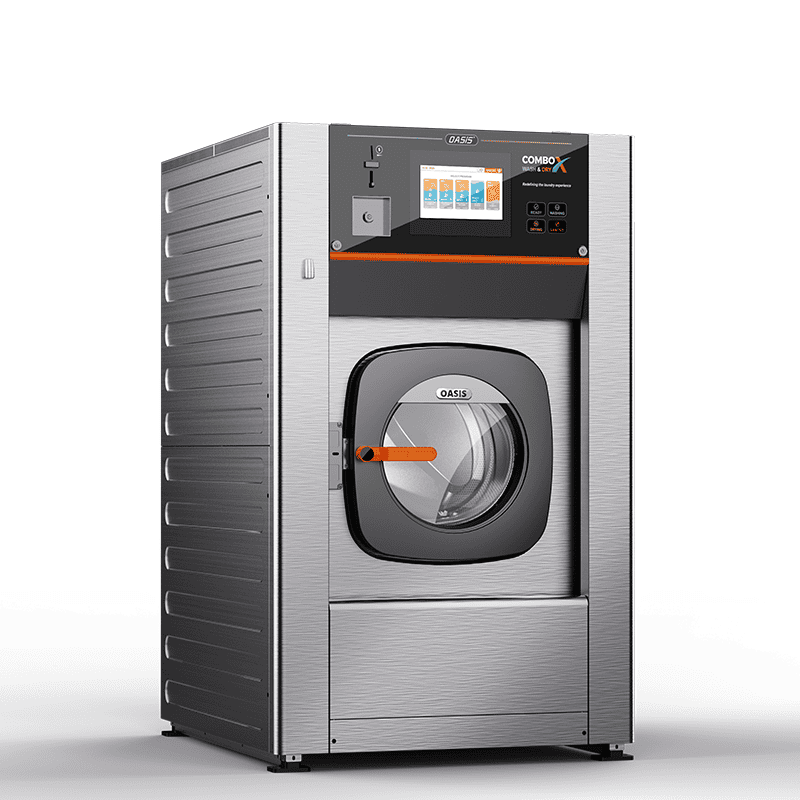

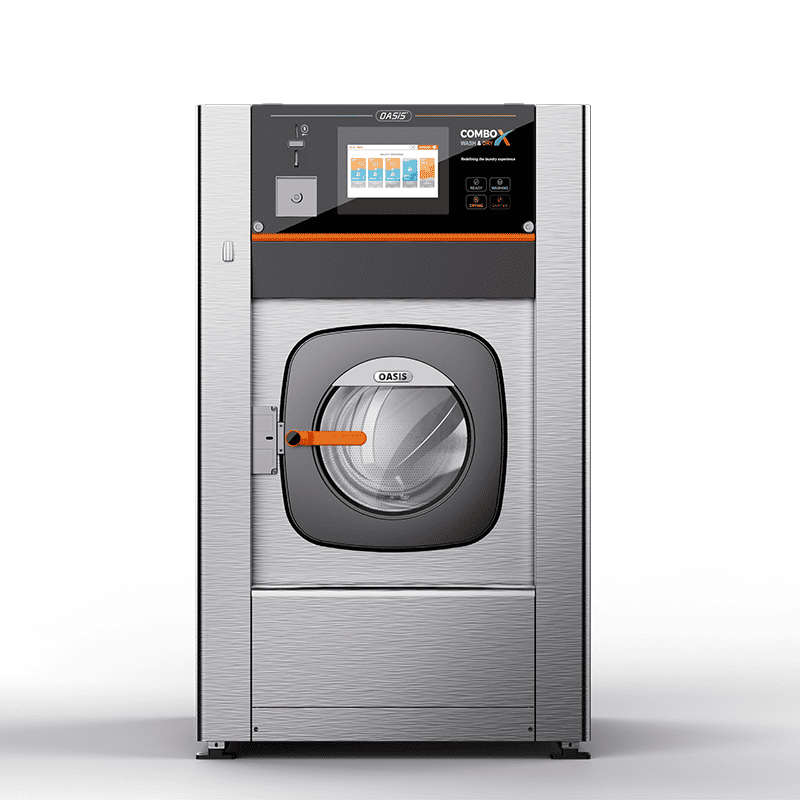

20KG Coin-Operated Single-Drum Washer Dryer Combo
Features:
1.Combined softmount washer and dryer into one pocket
2.1-hour wash and dry cycle
3.Stainless steel drum
4.High 300 G-force extraction for optimal drying performance
5.Clad steel panels resist rust and fingerprints
6.Front lint filter drawer makes clean lint easier.
7.Standard configuration includes 4 chemical compartments and 5 hoses for dosing pumps.
8.Mechanical and electronic double door locks, along with an emergency stop
9.Advanced inverter drive system
10.Easy access to service parts from front and back panels
Product Features:
1. High 300 G-force extraction for optimal drying performance
2. Composite steel plate is well rust and fingerprint proof, maintaining the original appearance of your clothes.
3. Advanced frequency conversion drive system can ensure a smooth start, energy saving and prolong the service life of the machine.
4. Intuitive touch screen control, easy to use.
5. Mechanical and electronic double door locks and emergency stop devices can provide maximum security.
6.Advanced inverter drive system
Product Parameter:
| Model | XHY20 | XHY30 | ||
| Washing capacity | kg | 20 | 30 | |
| Drying capacity | kg | 12 | 18 | |
| Cylinder diameter | mm | 683 | 774 | |
| Cylnder depth | mm | 550 | 580 | |
| Cylinder volume | L | 201 | 273 | |
| Washing speed | rpm | 40-50 | 40-50 | |
| Spin speed | rpm | 900 | 850 | |
| G force | 308 | 312 | ||
| Drive Motor | kw | 1.2 | 2 | |
| Fan Motor | kw | 0.55 | 0.55 | |
| Gas inlet | inch | 1/2 | ||
| Gas pressure | kPa | NG 1.0-2.5;LPG 2.3-3.3 | ||
| Exhaust | mm | φ160 | φ160 | |
| Exhaust airflow | m³/h | 501 | 825 | |
| Power supply | 220-240VAC @50/60Hz 1ph (15A Max) | |||
| Water inlet,hot | inch | 3/4 | ||
| Water inlet,cold | inch | 3/4 | ||
| Chemical flush | inch | 3/4 | ||
| Auto chemical | 4 connections,Optional dosing pump | |||
| Water Pressure | Mpa | 0.1 -0.3 | ||
| Dimension WxDxH | mm | 960×1170×1628 | 1080×1289×1738 | |
| Packing WxDxH | mm | 980×1190×1728 | 1100×1309×1838 | |
| Weight net | kg | 560 | 740 | |
| Weight gross | kg | 580 | 760 | |
| OASIS preserves the right to change the machines and specifications at any time without prior notice. | ||||
Company Strength:
Full-range production and supply capabilities covering space-saving Washer And Dryer Combo systems, revenue-optimized Coin Operated Washer And Dryer In One units, and heavy-duty Industrial All In One Washer Dryer solutions.
Modular equipment designs with energy efficiency advantage.
Dedicated technical support team providing multi-language services.
Flexible OEM/ODM solutions for regional market adaptation.
Customer Communication:
Product Certification:
Our company has four authoritative certifications covering management systems and product compliance: three IAF/CNAS certifications (ISO9001, ISO14001, ISO45001) validate its international standards in quality control,environmental management, and occupational health and safety, while the EU compliance statement confirms its compliance with the Machinery and EMC directives, making its products eligible to enter the EU market. These certificates collectively demonstrate the company's robust management practices and global market readiness.
Product Application:
Hotel Healthcare Laundromat
