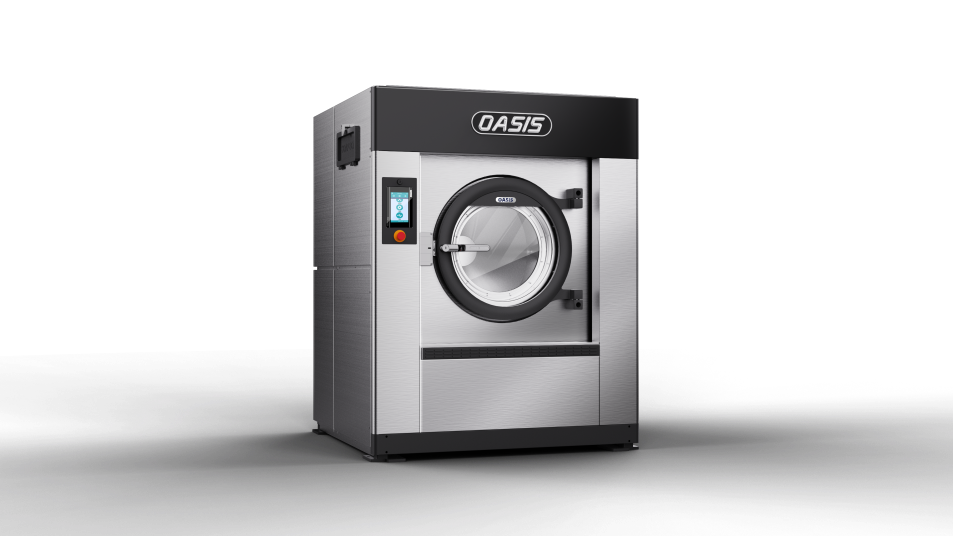

100KG Softmount Washer Extractor SXT-1000 FD/ZQ
User Friendly Operation and Powerful Functions
l The 7-inch full-color LCD touchscreen controller contains 50 multilingual programs, allowing operators to customize wash programs to suit specific loads and types of linens.
l The connectivity options including USB and IoT are designed for effortless management and best-in-class programmability.
Ergonomic and Safety-First Design for Industrial Use
l Convenient access to all components simplifies maintenance tasks.
l The 180° openable door design allows for easy loading and unloading with minimal effort.
l The dual detection door lock system automatically detects the opening and closing status of the door at each washing cycle to ensure the equipment does not start inadvertently.
l Built-in LED light realizes washing visualization.
Full Suspension Composite Shock Absorption Technology Minimizes Vibration and Maximizes Stability
l Cutting-edge shock absorption technology with SUSPA shock absorbers guarantee ultra-low vibration.
l Each machine is rigorously tested to endure extreme out-of-balance conditions.
Maximized Productivity and Minimized Running Costs
l Inverter drive system ensures higher extraction speeds, lower energy consumption, lower noise level, and minimal imbalance.
l The stainless-steel, 3D stereoscopic honeycomb-shaped inner drum ensures superior washing results and optimized water extraction. The waterfall-style water flow creates a lattice convection which maximizes the washing quality, minimizes water consumption and cycle time.
l Standard with manual and automatic dosing options. Five-compartment dispenser and 9 dosing ports ensure precise chemical injection.
Industry-Leading Quality and Maintenance-Free
l The whole machine has an industry-leading level of molding.
l Bearings are permanently lubricated, and double-sealed structure prevents moisture and solvent intrusion.
Product description:
MODEL: SXT-1000FD/ZQ
Available in electric heating and steam heating.
Maximized Productivity and Minimized Running Costs
l Inverter drive system ensures higher extraction speeds, lower energy consumption, lower noise level, and minimal imbalance.
l The stainless-steel, 3D stereoscopic honeycomb-shaped inner drum ensures superior washing results and optimized water extraction. The waterfall-style water flow creates a lattice convection which maximizes the washing quality, minimizes water consumption and cycle time.
l Standard with manual and automatic dosing options. Five-compartment dispenser and 9 dosing ports ensure precise chemical injection.
Product Parameter:
Specifications | Unit | SXT-400F | SXT-600F | SXT-800F | SXT-1000F | SXTQ-1000F | SXT-1200F | SXTQ-1200F |
Capacity | kg | 40 | 60 | 80 | 100 | 100 | 120 | 120 |
Cylinder Diameter | mm | 903 | 1078 | 1078 | 1310 | 1310 | 1310 | 1310 |
Cylinder Depth | mm | 626 | 620 | 820 | 746 | 746 | 816 | 816 |
Door Center to Floor | mm | 982 | 1184 | 1184 | 1246 | 1434 | 1246 | 1441 |
Cold Water Inlet | inch | 1¼ | 1¼ | 1¼ | 2 | 2 | 2 | 2 |
Hot Water Inlet | inch | 1¼ | 1¼ | 1¼ | 2 | 2 | 2 | 2 |
Steam inlet | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Compressed air inlet* | mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Drain Diameter | mm | 76 | 125 | 125 | 2*125 | 2*125 | 2*125 | 2*125 |
Motor Power | kW | 4 | 7.5 | 7.5 | 11 | 11 | 11 | 11 |
Heating Power | kW | 30 | 30 | 30 | 60 | 60 | 60 | 60 |
Wash Speed | RPM | 30-40 | 30-40 | 30-40 | 30-38 | 30-38 | 30-38 | 30-38 |
Extract Speed | RPM | 220-700 | 220-700 | 220-700 | 220-650 | 220-650 | 220-650 | 220-650 |
Voltage | V | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 |
Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Overall Width | mm | 1230 | 1619 | 1619 | 1774 | 1850 | 1774 | 1850 |
Overall Depth | mm | 1433 | 1492 | 1692 | 1761 | 1825 | 1828 | 1895 |
Overall Height | mm | 1735 | 1965 | 1965 | 2092 | 2285 | 2092 | 2290 |
Net Weight | kg | 1190 | 1910 | 2200 | 3170 | 3400 | 3220 | 3480 |
* Compressed air inlet only applies to steam heating models. |
