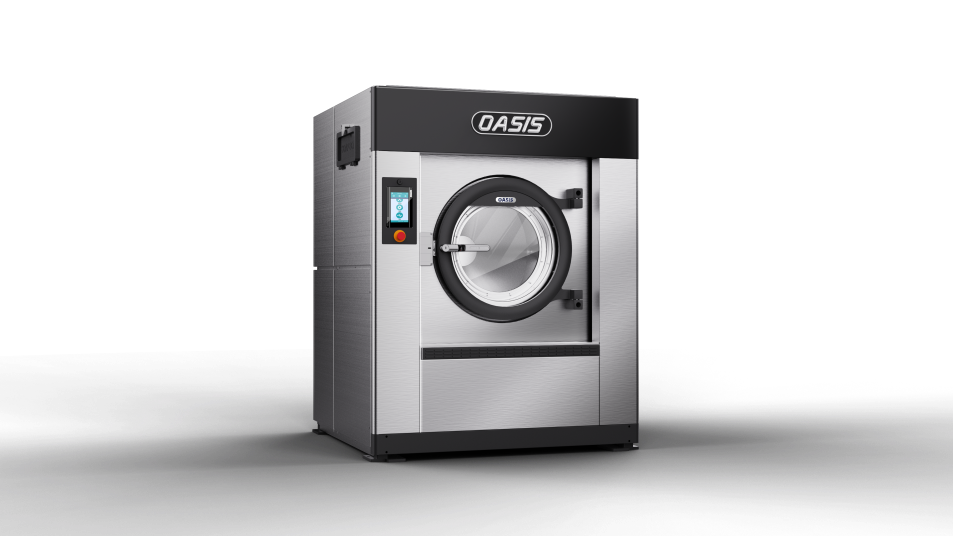

80KG Softmount Washer Extractor SXT-800FD/ZQ
User Friendly Operation and Powerful Functions
l The 7-inch full-color LCD touchscreen controller contains 50 multilingual programs, allowing operators to customize wash programs to suit specific loads and types of linens.
l The connectivity options including USB and IoT are designed for effortless management and best-in-class programmability.
Ergonomic and Safety-First Design for Industrial Use
l Convenient access to all components simplifies maintenance tasks.
l The 180° openable door design allows for easy loading and unloading with minimal effort.
l The dual detection door lock system automatically detects the opening and closing status of the door at each washing cycle to ensure the equipment does not start inadvertently.
l Built-in LED light realizes washing visualization.
Full Suspension Composite Shock Absorption Technology Minimizes Vibration and Maximizes Stability
l Cutting-edge shock absorption technology with SUSPA shock absorbers guarantee ultra-low vibration.
l Each machine is rigorously tested to endure extreme out-of-balance conditions.
Maximized Productivity and Minimized Running Costs
l Inverter drive system ensures higher extraction speeds, lower energy consumption, lower noise level, and minimal imbalance.
l The stainless-steel, 3D stereoscopic honeycomb-shaped inner drum ensures superior washing results and optimized water extraction. The waterfall-style water flow creates a lattice convection which maximizes the washing quality, minimizes water consumption and cycle time.
l Standard with manual and automatic dosing options. Five-compartment dispenser and 9 dosing ports ensure precise chemical injection.
Industry-Leading Quality and Maintenance-Free
l The whole machine has an industry-leading level of molding.
l Bearings are permanently lubricated, and double-sealed structure prevents moisture and solvent intrusion.
Product description:
MODEL:SXT-800FD/ZQ
Available in electric heating and steam heating.
Cutting-edge Full Suspension Composite Shock Absorption Technology for Enhanced Stability and Minimal Vibration
- Our advanced shock absorption technology, featuring SUSPA shock absorbers, ensures ultra-low vibration, maximizing stability.
l Every machine undergoes rigorous testing to withstand extreme out-of-balance conditions.
Product Parameter:
Specification | SXT-400F | SXT-600F | SXT-800F | SXT-1000F | SXTQ-1000F | SXT-1200F | SXTQ-1200F | |
Capacity | kg | 40 | 60 | 80 | 100 | 100 | 120 | 120 |
Cylinder Diameter | mm | 903 | 1078 | 1078 | 1310 | 1310 | 1310 | 1310 |
Cylinder Depth | mm | 626 | 620 | 820 | 746 | 746 | 816 | 816 |
Door Center to Floor | mm | 982 | 1184 | 1184 | 1246 | 1434 | 1246 | 1441 |
Cold Water Inlet | inch | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ |
Hot Water Inlet | inch | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ |
Steam inlet | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Compressed air inlet* | mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Drain Diameter | mm | 76 | 125 | 125 | 2*125 | 2*125 | 2*125 | 2*125 |
Motor Power | kW | 4 | 7.5 | 7.5 | 11 | 11 | 11 | 11 |
Heating Power | kW | 30 | 30 | 30 | 60 | 60 | 60 | 60 |
Wash Speed | RPM | 30-40 | 30-40 | 30-40 | 30-38 | 30-38 | 30-38 | 30-38 |
Extract Speed | RPM | 220-700 | 220-700 | 220-700 | 220-650 | 220-650 | 220-650 | 220-650 |
Voltage | V | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 |
Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Overall Width | mm | 1230 | 1619 | 1619 | 1774 | 1850 | 1774 | 1850 |
Overall Depth | mm | 1433 | 1492 | 1692 | 1761 | 1825 | 1828 | 1895 |
Overall Height | mm | 1735 | 1965 | 1965 | 2092 | 2285 | 2092 | 2290 |
Net Weight | kg | 1190 | 1910 | 2200 | 3170 | 3400 | 3220 | 3480 |
*Compressed air inlet only applies to steam heating models.
Product inspection:
At our company, quality is paramount. We are committed to excellence throughout the production and testing processes, upheld by a comprehensive quality control system. Our rigorous measures include meticulous product inspections before leaving the factory, covering functionality, durability, safety, and even destructive testing. Our team of experienced technicians ensures that each unit meets the highest industry standards and exceeds customer expectations.
Additionally, this product holds both ISO9001 and EU CE certifications, underscoring our dedication to quality and compliance with international standards.
