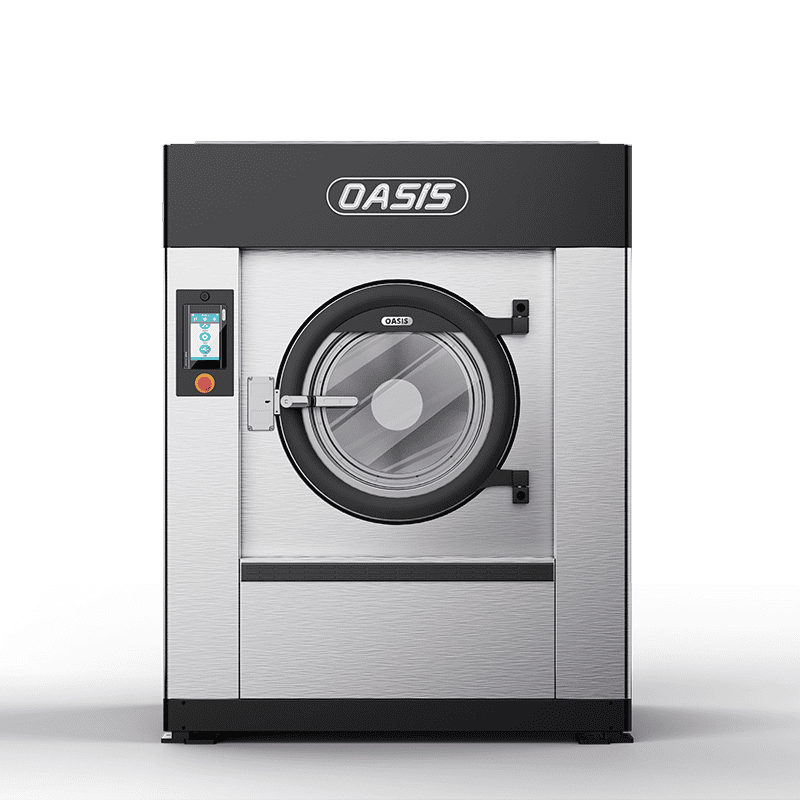

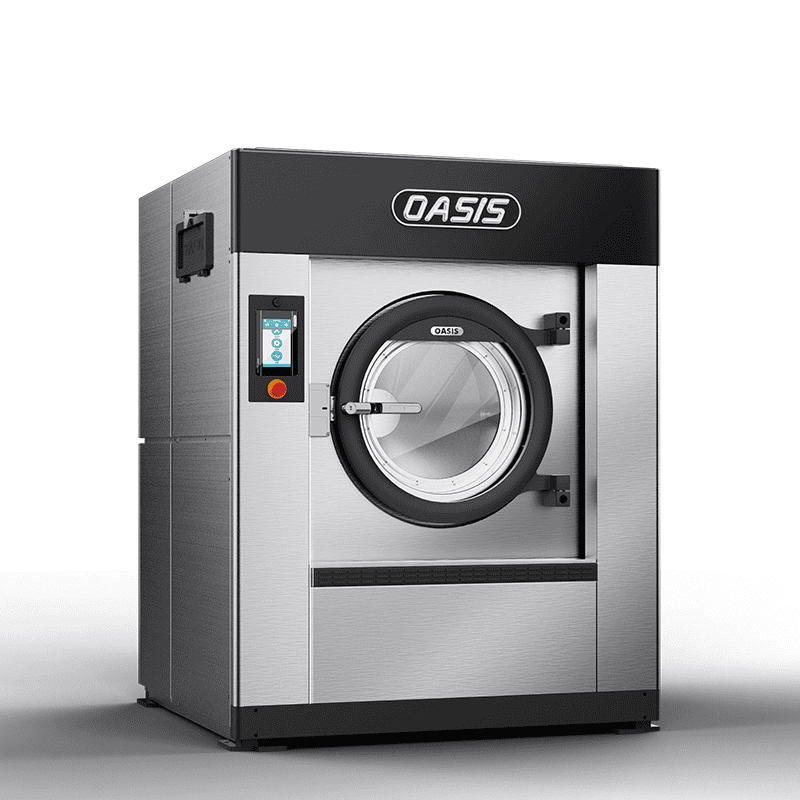

60KG Softmount Washer Extractor SXT-600FD/ZQ
User Friendly Operation and Powerful Functions
l The 7-inch full-color LCD touchscreen controller contains 50 multilingual programs, allowing operators to customize wash programs to suit specific loads and types of linens.
l The connectivity options including USB and IoT are designed for effortless management and best-in-class programmability.
Ergonomic and Safety-First Design for Industrial Use
l Convenient access to all components simplifies maintenance tasks.
l The 180° openable door design allows for easy loading and unloading with minimal effort.
l The dual detection door lock system automatically detects the opening and closing status of the door at each washing cycle to ensure the equipment does not start inadvertently.
l Built-in LED light realizes washing visualization.
Full Suspension Composite Shock Absorption Technology Minimizes Vibration and Maximizes Stability
l Cutting-edge shock absorption technology with SUSPA shock absorbers guarantee ultra-low vibration.
l Each machine is rigorously tested to endure extreme out-of-balance conditions.
Maximized Productivity and Minimized Running Costs
l Inverter drive system ensures higher extraction speeds, lower energy consumption, lower noise level, and minimal imbalance.
l The stainless-steel, 3D stereoscopic honeycomb-shaped inner drum ensures superior washing results and optimized water extraction. The waterfall-style water flow creates a lattice convection which maximizes the washing quality, minimizes water consumption and cycle time.
l Standard with manual and automatic dosing options. Five-compartment dispenser and 9 dosing ports ensure precise chemical injection.
Industry-Leading Quality and Maintenance-Free
l The whole machine has an industry-leading level of molding.
l Bearings are permanently lubricated, and double-sealed structure prevents moisture and solvent intrusion.
Product description:
MODEL: SXT-600FD/ZQ
Available in electric heating and steam heating.
Ergonomic and Safety-First Design for Industrial Use
l Convenient access to all components simplifies maintenance tasks.
l The 180° openable door design allows for easy loading and unloading with minimal effort.
l The dual detection door lock system automatically detects the opening and closing status of the door at each washing cycle to ensure the equipment does not start inadvertently.
l Built-in LED light realizes washing visualization.
Product Parameter:
Specification | SXT-400F | SXT-600F | SXT-800F | SXT-1000F | SXTQ-1000F | SXT-1200F | SXTQ-1200F | |
Capacity | kg | 40 | 60 | 80 | 100 | 100 | 120 | 120 |
Cylinder Diameter | mm | 903 | 1078 | 1078 | 1310 | 1310 | 1310 | 1310 |
Cylinder Depth | mm | 626 | 620 | 820 | 746 | 746 | 816 | 816 |
Door Center to Floor | mm | 982 | 1184 | 1184 | 1246 | 1434 | 1246 | 1441 |
Cold Water Inlet | inch | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ |
Hot Water Inlet | inch | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ | 1½ |
Steam inlet | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Compressed air inlet* | mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Drain Diameter | mm | 76 | 125 | 125 | 2*125 | 2*125 | 2*125 | 2*125 |
Motor Power | kW | 4 | 7.5 | 7.5 | 11 | 11 | 11 | 11 |
Heating Power | kW | 30 | 30 | 30 | 60 | 60 | 60 | 60 |
Wash Speed | RPM | 30-40 | 30-40 | 30-40 | 30-38 | 30-38 | 30-38 | 30-38 |
Extract Speed | RPM | 220-700 | 220-700 | 220-700 | 220-650 | 220-650 | 220-650 | 220-650 |
Voltage | V | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 |
Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Overall Width | mm | 1230 | 1619 | 1619 | 1774 | 1850 | 1774 | 1850 |
Overall Depth | mm | 1433 | 1492 | 1692 | 1761 | 1825 | 1828 | 1895 |
Overall Height | mm | 1735 | 1965 | 1965 | 2092 | 2285 | 2092 | 2290 |
Net Weight | kg | 1190 | 1910 | 2200 | 3170 | 3400 | 3220 | 3480 |
*Compressed air inlet only applies to steam heating models.
Packaging and transportation:
Our equipment can be transported by vessel or rail. We usually use wooden boxes or cardboard boxes for packing. For oversized machines, we usually use carton or PE film for packing or pack according to customers special requests.
Each machine is well supported and reinforced in the container to ensure safe arrival at customers destination.
Company Strength:
1. The most cutting-edge production equipment and software ensure the industry-leading quality, aesthetics and stability of OASIS machines.
2. Fully in-house R&D and production ensures rapid response to market and customer needs, swift product upgrades and iterations, as well as flexible OEM solutions catering to client requirements.
3. The most comprehensive product range in the industry addresses the diverse needs of various industries and offers tailored industry solutions. OASIS products include dry cleaning machines, hardmount and softmount washer extractors, barrier washer extractors, tumble dryers, vended laundry equipment, textile finishing equipment, garment finishing equipment, automation control system, etc.
4. Higher productivity and lower running costs of OASIS machines gives you unmatched cost-effectiveness, assuring you stay ahead of the competition in business.
5. OASIS rapidly expanding global distributors network delivers prompt guidance, service, support and up-to-date knowledge about the latest sector standards and best practice.
